Standard Panels
![](/userfolders/Sawyer-Products/images/Hercules-Banner-standard-panels.png)
![](/userfolders/Sawyer-Products/images/r-panel.jpg)
![](/userfolders/Sawyer-Products/images/tex-rib.jpg)
![](/userfolders/Sawyer-Products/images/u-panel.jpg)

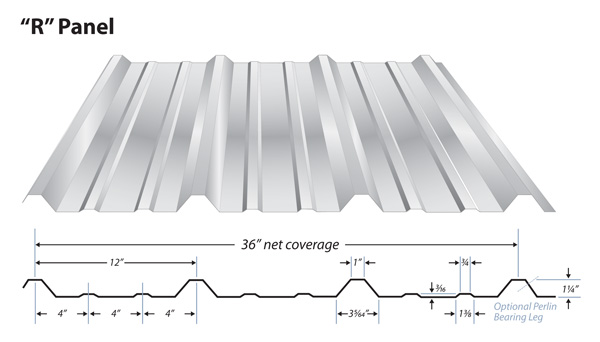

• R-Panel is a multi-use wall and roof panel used primarily in preengineered metal building applications.

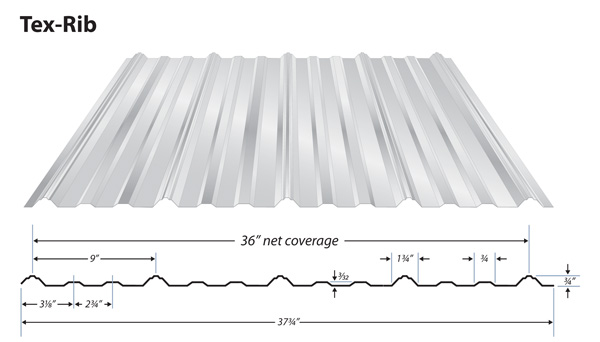

• Tex-Rib is a low profile (3/4") panel that is well suited for commercial, agricultural and residential applications. Tex-Rib can be installed on as
low as a 1:12 pitch if sealant is used on the sidelaps. If not, a 3:12 pitch is recommended.

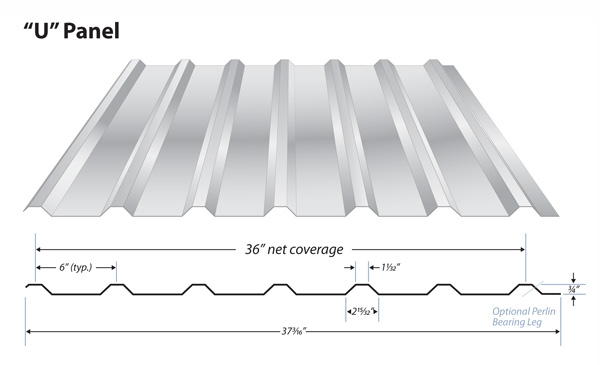

• U-Panel is an exposed fastener wall and roof panel that is mainly used as a liner or partition panel.

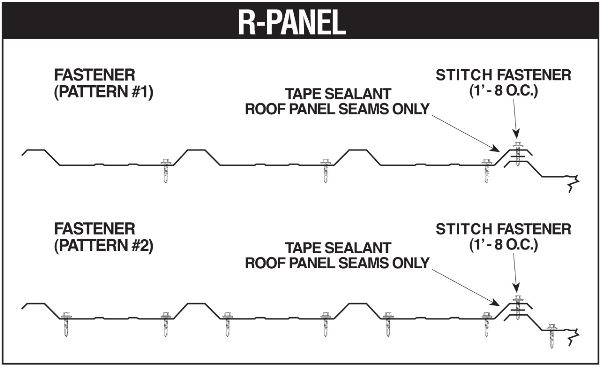

Fastening Methods
![](/userfolders/Sawyer-Products/images/fastening-model-tex-rib.jpg)
![](/userfolders/Sawyer-Products/images/fastening-model-u-panel.jpg)

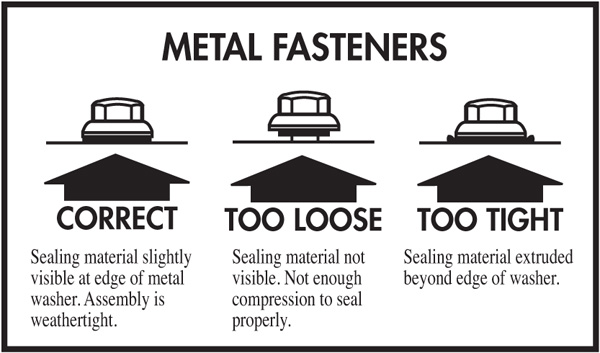

The use of proper fasteners and installation procedures is an important factor in the appearance and performance of the panel system. Roofing and siding may be installed using fasteners with weather seal washers.
Sawyer Metal shall not be liable for any claim or claims which arise out of the handling or installation of the material.
